HDPE Resin

HDPE resin for blow-molded containers, pressure pipe, film and injection-molded crates, selected by density and melt index. Send an RFQ.

HDPE grades

High-density polyethylene has a density of about 0.941 g/cm³ and above. It is stiffer, stronger and more chemical resistant than LDPE and LLDPE, which makes it the material for containers, pipe and crates.

Within HDPE, the melt index and molecular weight distribution decide the process.

HDPE Resin grades compared

Typical values from each producer's data sheet; open a grade for full specifications.

Grade	Producer	Type	MFR	Processing
Borouge HE3488LS-W HDPE Resin	Borouge	HDPE	0.27g/10min	Pipe Extrusion
DOW 17450N HDPE Resin	Dow	HDPE	17 g/10 min	Injection Molding
DOW 8920NT7 HDPE Resin	Dow	HDPE	20 g/10 min	Injection Molding
DOW XZ-89609 HDPE Resin	Dow	HDPE	8	Injection Molding
ExxonMobil HD56200(HMA016) HDPE Resin	ExxonMobil	HDPE	20 g/10 min	Injection Molding
ExxonMobil HD6207FL(HTA108) HDPE Resin	ExxonMobil	HDPE	0.70 g/10 min	Film Extrusion
FUYA HHM5502BN HDPE Resin	FUYA	HDPE	0.35–g/10min	Blow Molding
Hengli GF7750M2 HDPE Resin	Hengli	HDPE	g/10min–0.25	Fiber
Lotrene Q5502BN HDPE Resin	Lotrene	HDPE	0.35 g/10min (D1238)	Blow Molding
Marlex HHMTR-144 HDPE Resin	Marlex	HDPE	0.18 g/10 min	Film Extrusion
Marlex HXM50100 HDPE Resin	Marlex	HDPE	HLMI 10 g/10 min (190 °C / 21.6 kg)	Blow Molding
Marlex TR131 HDPE Resin	Marlex	HDPE	0.2 g/10 min–D1238	Film Extrusion

Show all grades

Grade	Producer	Type	MFR	Processing
Marlex TRB-115 HDPE Resin	Marlex	HDPE	-–0.06 g/10 min	Film Extrusion
SABIC FI0750 HDPE Resin	SABIC	HDPE	7.5 at 190 °C and 21.6 kg	Film Extrusion
SABIC FI0851P HDPE Resin	SABIC	HDPE	—	Film Extrusion
SABIC P6006 HDPE Resin	SABIC	HDPE	0.23 g/10 min (190 °C / 5 kg)	Pipe Extrusion
Wanhua 23050 HDPE Resin	Wanhua	HDPE	0.23–g/10min	Pipe Extrusion

Choosing an HDPE grade

Blow molding: MI (190 °C / 2.16 kg) around 0.2–1, with good environmental stress-crack resistance for chemical containers.
Pipe: Bimodal PE80 or PE100 grades with very low MI.
Film: High-molecular-weight grades for thin, strong carrier bags and liners.
Injection molding: MI 4–20 for crates, caps and housewares.

Typical applications

Bottles, jerrycans and drums
PE80 / PE100 pressure pipe
Carrier bags and liners
Crates, caps and closures

Processing notes

No drying needed. Blow molding and pipe run at about 190–230 °C; injection molding at 200–260 °C. Shrinkage is high (about 1.5–3%), so mold design matters.

General guidance only; follow the producer's TDS for each grade.

Producers in this category

Supply and documents

MOQ17 MT for most grades
Loading portsXingang, Qingdao, Shanghai, Ningbo, Guangzhou, Shenzhen
DocumentsTDS and the COA for the shipped lot; MSDS and food-contact declarations where the producer issues them.

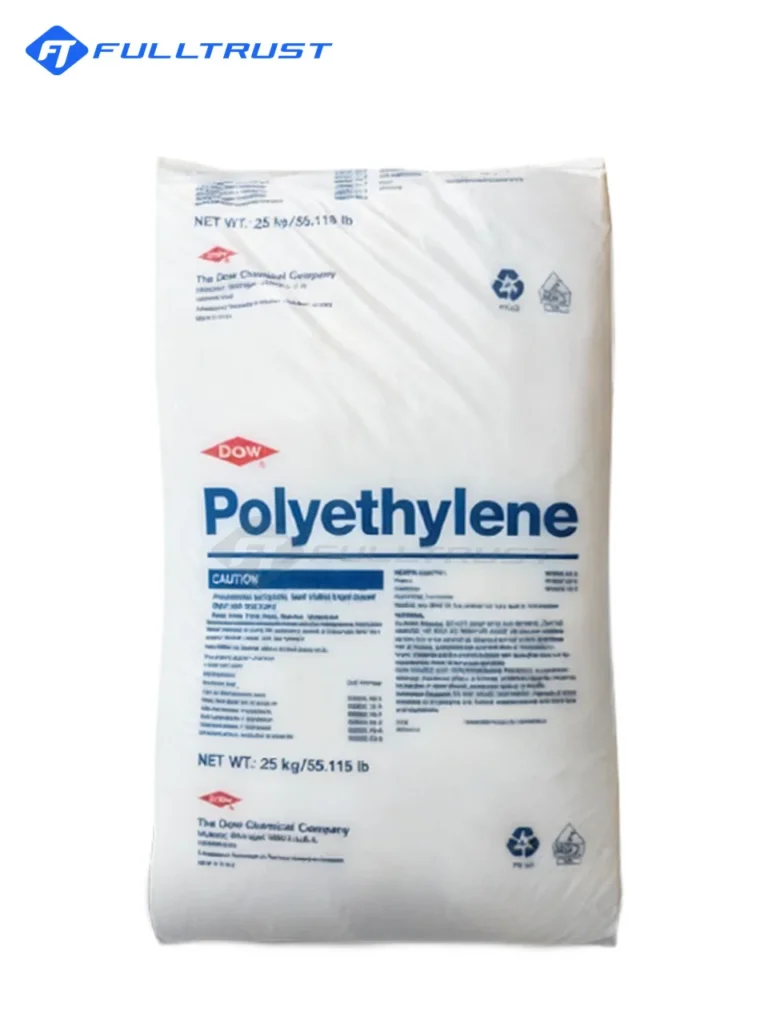

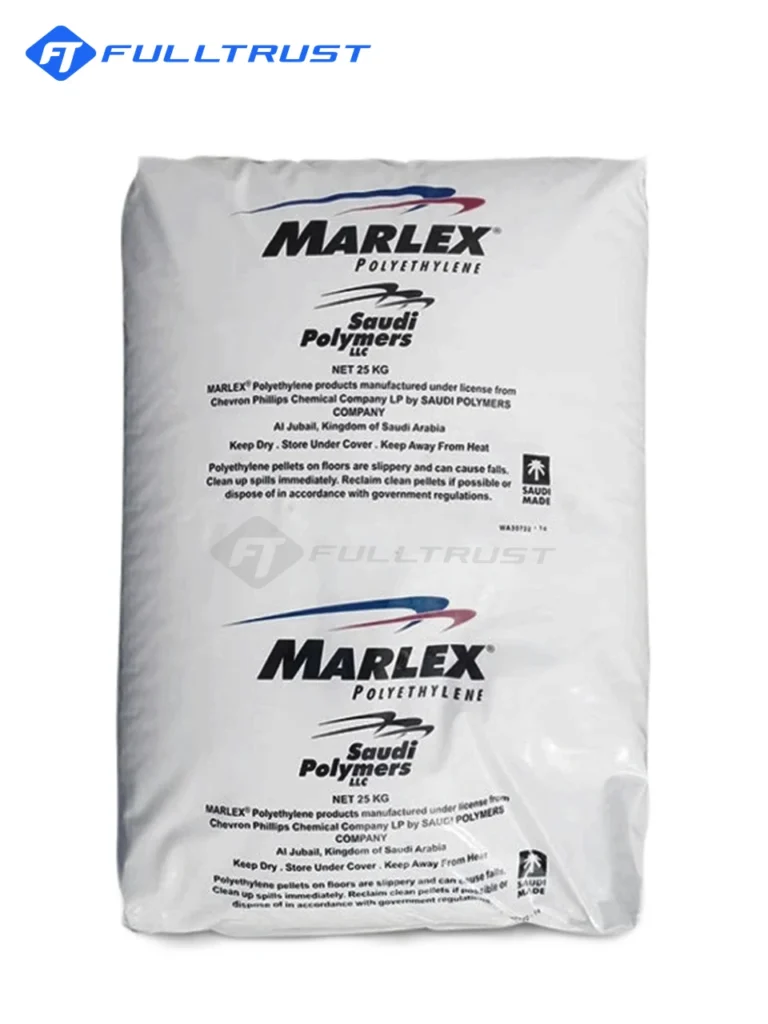

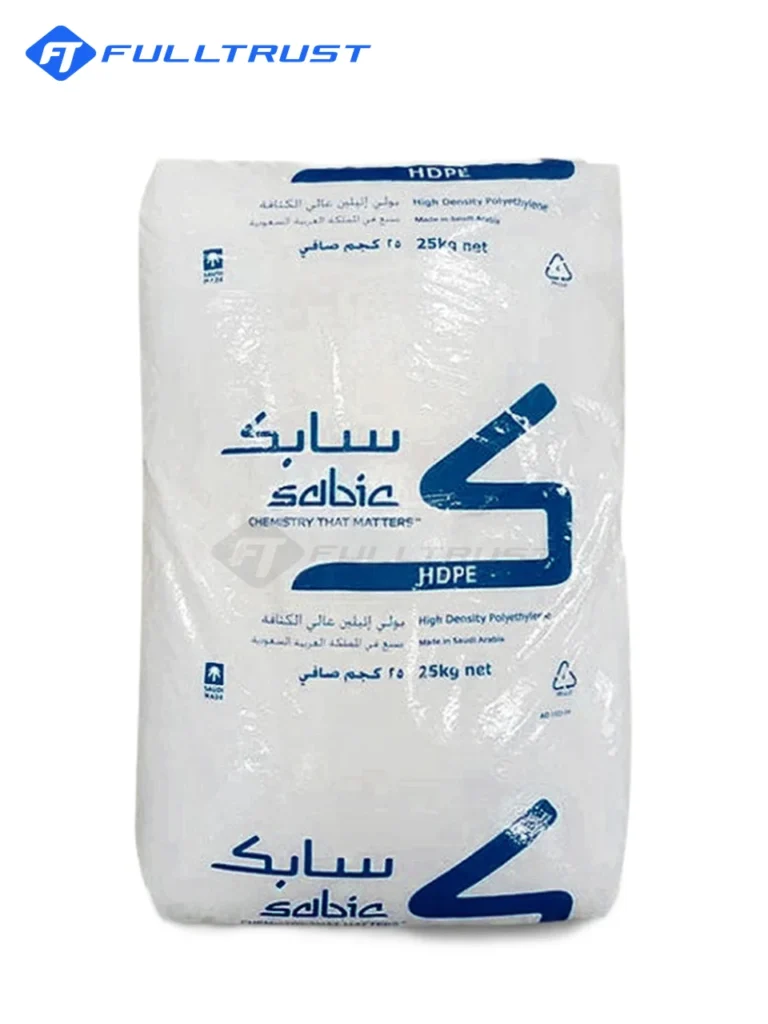

PackingProducer's sealed original bags with lot numbers.

HDPE Resin: common questions

What is the difference between PE80 and PE100?

The minimum required strength at 50 years: 8 MPa for PE80, 10 MPa for PE100. PE100 allows thinner walls at the same pressure rating.
